1 Meter Clutter Data

1 Meter Clutter Data is now available for accounts Tier 3 and above.

When users create a site the header will show a message confirming data availability.

Site Creation Interface

This confirmation is also available on sites and coverage maps along with the option to upgrade if your account is of a lower tier.

Upgrade Message

Coverage Interface

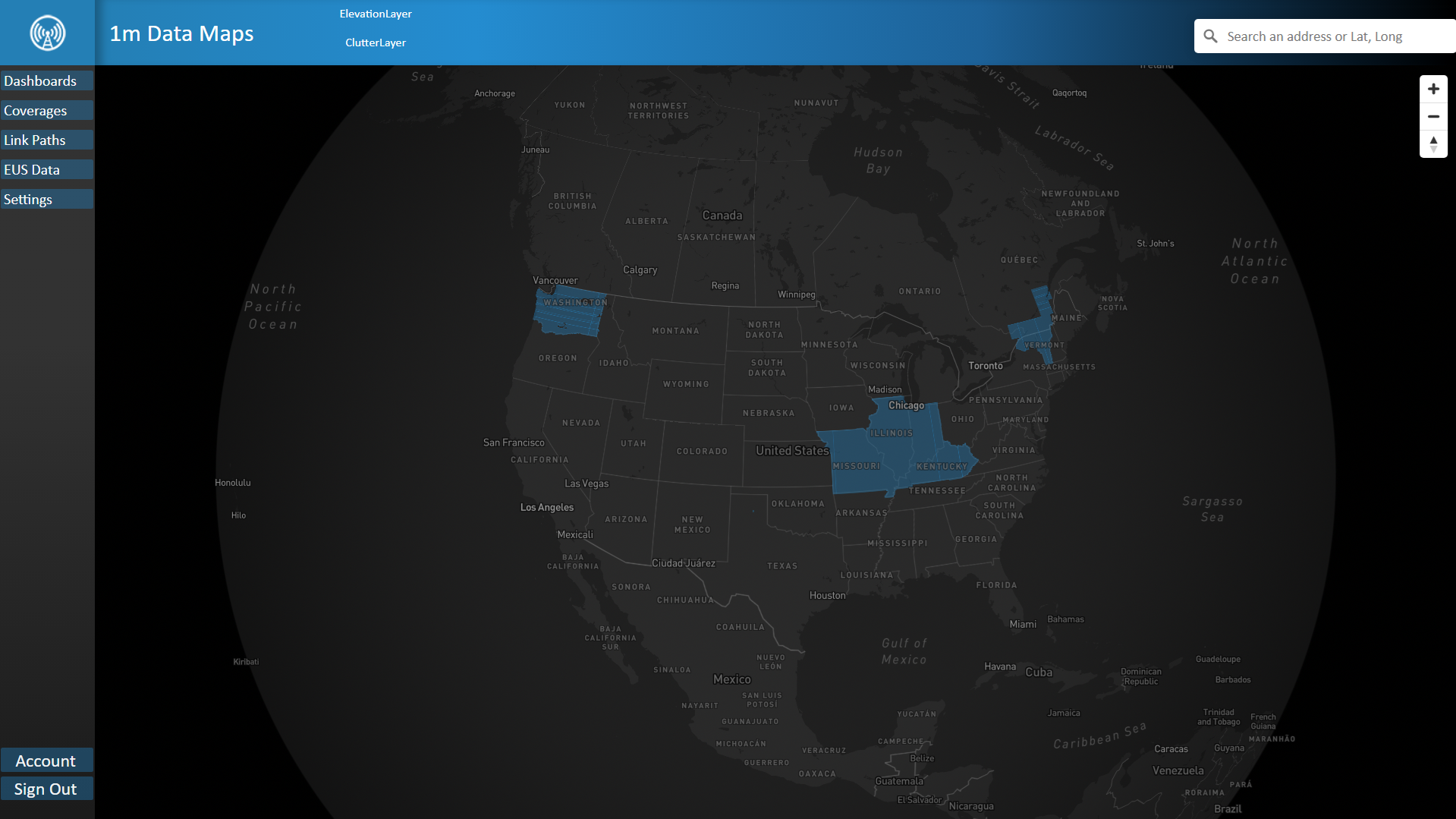

Under the Settings tab in TowerCoverage there is a 1 Meter Clutter Data Map which shows all 1 Meter Clutter Data available in blue.

Data Map

This map will be kept updated as more data becomes available.

Setting your coverage to specific rendering qualities may override your current land clutter settings. See chart below for further explanation.

Settings by Rendering Quality

  • ULTRA = highest available clutter and elevation data.
  • VERY HIGH = up to 1/9th arc second clutter where available and highest available elevation data.
  • HIGH = up to 1/9th arc second clutter and elevation where available.
  • MEDIUM = 1/3 arc second for clutter, 1/9th elevation where available.
  • LOW = 1/3 arc sec data for both.
  • VERY LOW = 1 arc second data for both
